Metal Random Packing are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.Metal Pall Ring will have a variety of materials, such as carbon steel, stainless steel 304,304 L, 410,316,316 L, etc.

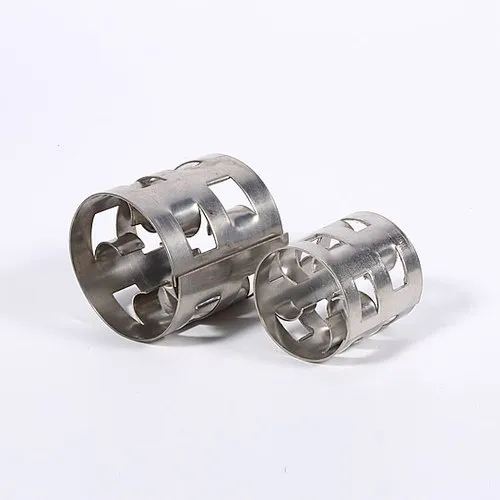

Metal Pall Ring
| Size (inch) | Dimension (mm) | Surface Area (m2/m3) | Free Volume (%) | Bulk Number (per/m3) | Bulk Density (kg/m3) |
|---|---|---|---|---|---|
|
1/4” |
6*6*0.3 |
904 |
88.6 |
4000000 |
900 |
|
3/8′ |
10*10*0.3 |
482 |
93.8 |
768000 |
480 |
|
1/2″ |
13*13*0.3 |
415 |
94.8 |
410000 |
420 |
|
5/8″ |
16*16*0.3 |
344 |
95.5 |
201000 |
348 |
|
1″ |
25*25*0.4 |
212 |
96.2 |
53500 |
288 |
|
1.5″ |
38*38*05 |
145 |
96.7 |
15180 |
246 |
|
2″ |
50*50*0.5 |
106 |
97.5 |
6500 |
185 |
|
3″ |
76*76*1.0 |
69 |
97.4 |
1920 |
265 |
|
3.5″ |
89*89*1.0 |
61 |
97.1 |
1220 |
224 |
Metal cascade mini rings with ONE bevel edge
| Size (inch) | Surface Area (m2/m3) | Free Volume (%) | Bulk Number (per/m3) | Bulk Density (kg/m3) | Dry Packing Factory (m-1) |
|---|---|---|---|---|---|
|
1″ (25) |
220 |
96.5 |
97160 |
459 |
273.54 |
|
1.5″ (25) |
154.3 |
95.9 |
31800 |
433 |
185.8 |
|
2″ (50) |
109.2 |
96.1 |
12300 |
323.9 |
127.4 |
|
3″ (76) |
73.5 |
97.6 |
3540 |
385 |
81 |

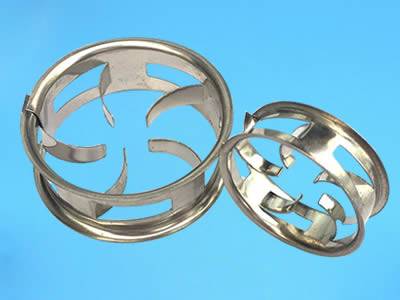

Metal cascade mini rings with TWO bevel edges
| Size (inch) | Dimension (mm) | Surface Area (m2/m3) | Free Volume (%) | Bulk Number (per/m3) | Bulk Density (kg/m3) | Dry Packing Factory (m-1) |
|---|---|---|---|---|---|---|
|
0p |
17*15*6*0.3 |
427 |
94 |
530,000 |
472 |
55 |
|
1p |
25*22*8*0.3 |
230 |
96 |
150,000 |
270 |
40 |
|
1.5p |
34*29*11*0.3 |
198 |
97 |
60,910 |
201 |
29 |
|
2p |
43*38*14*0.4 |
164 |
97 |
29,520 |
230 |
22 |
|
2.5p |
51*44*17*0.4 |
127 |
97 |
17,900 |
186 |
17 |
|
3p |
66*57*21*0.4 |
105 |
98 |
8800 |
139 |
14 |
|
4p |
86*76*89*0.4 |
90 |
98 |
5000 |
143 |
10 |
|
5p |
131*118*41*0.6 |
65 |
98 |
1,480 |
136 |
7 |

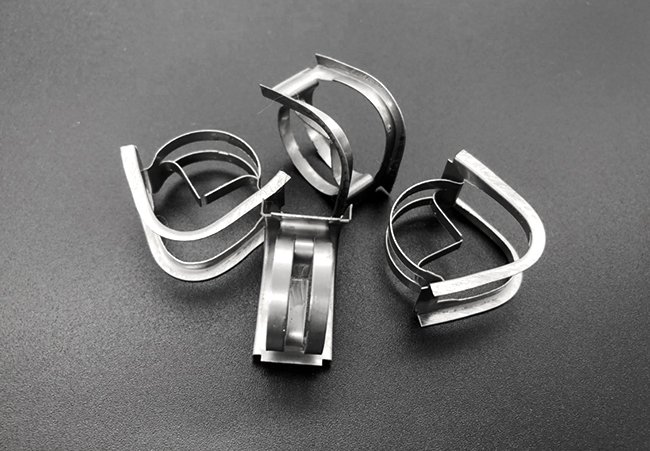

Metal Intalox Saddle IMTP
| Size (inch /mm) | Dimension (mm) | Surface Area (m2/m3) | Free Volume (%) | Bulk Number (per/m3) | Bulk Density (kg/m3) | Dry Packing Factory (m-1) |
|---|---|---|---|---|---|---|
|
5/8″ (15) |
16.5*10.6*0.3 |
275 |
96.7 |
324110 |
263 |
304.9 |
|
1″ (25) |
25.9*12.6*0.4 |
199 |
96.9 |
127180 |
266 |
221.0 |
|
1.5″ (40) |
35.4*18.8*0.4 |
151 |
97.4 |
51180 |
203 |
163.2 |
|
2″ (50) |
48.5*28.6*0.5 |
97 |
97.9 |
15550 |
169 |
103.9 |
|
2.4″ (60) |
67*37*0.5 |
84 |
98.2 |
90000 |
145 |
88.4 |
|
2.8″ (70) |
76.5*42.5*0.5 |
61 |
98.7 |
4690 |
106 |
63.5 |

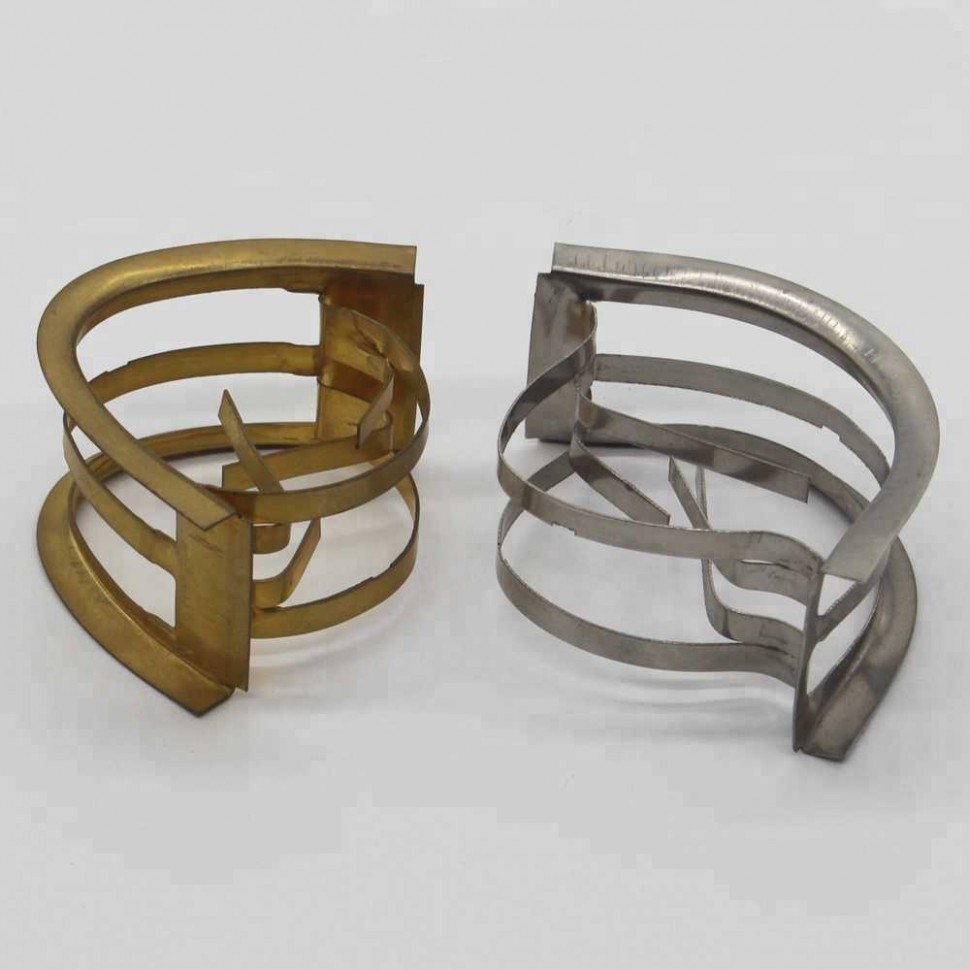

Metal Nutter Ring
| Size (inch /mm) | Dimension (mm) | Surface Area (m2/m3) | Free Volume (%) | Bulk Number (per/m3) | Bulk Density (kg/m3) | Dry Packing Factory (m-1) |
|---|---|---|---|---|---|---|
|
0.7″ (18) |
0.2 |
230 |
97.9 |
167374 |
165 |
244.7 |
|
1″ (25) |
0.3 |
143 |
98.1 |
60870 |
149 |
151.5 |
|
1.5″ (38) |
0.4 |
110 |
98.0 |
24740 |
158 |
116.5 |
|
2″ (50) |
0.4 |
89 |
98.4 |
13600 |
129 |
93.7 |
|
2.5″ (65) |
0.4 |
78 |
98.6 |
9310 |
114 |
81.6 |
|
3″ (76) |
0.5 |
59.6 |
98.6 |
3940 |
111 |
61.9 |
